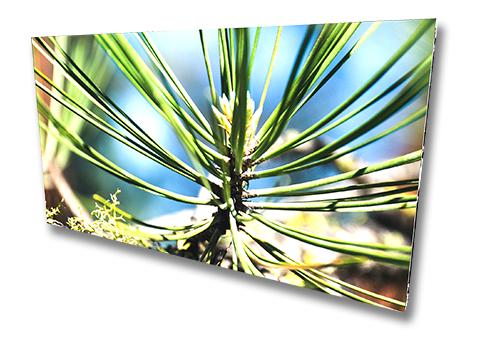

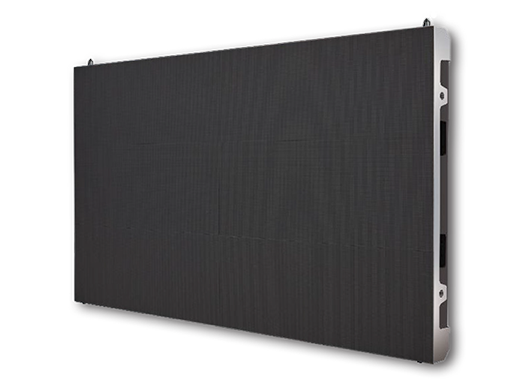

DVLC125 Fine-Pitch COB Direct View LED
A slim, front-serviceable P1.25 indoor LED video wall engineered for seamless 16:9 deployments, vivid HDR visuals, and reliable 24/7 operation. Makes it a strong solution for corporate lobbies, command centers, retail, education, and high-end public spaces.
Secure‑ready with no Wi‑Fi/Bluetooth/RF and TAA‑compliant.
Features
COB LED Technology
P1.25 Fine Pitch
High Brightness/
Deep Contrast
600–800 nits / 15,000:1
24/7 Rated
Commercial Grade Operation
IP Rating
IP65 Front / IP30 Rear Protection
Factory Calibration Uniformity
≥98% Brightness Uniformity / Color Uniformity within 0.003 Cx, Cy / Factory Color Calibrated
Industrial Reliability
100,000-Hour Typical LED Lifetime
(Half Brightness)
Specifications
| Item | Detail |
|---|---|
| Technology | COB (Chip on Board) |
| Cabinet Size (diag.) | 27" |
| Pixel Pitch (mm) options | 1.25mm |
| Cabinet Resolution (W x H) | 480 x 270 |
| Aspect Ratio | 16:9 |
| Brightness | 600-800nit |
| Refresh Rate | 3840Hz |
| View angle（H/V°） | 140° / 120° |
| Weight per panel | 10.14 lbs |
| Cabinet Material | Die-cast aluminum |
| Lifetime (half brightness) | 100,000 hours |
Cut Sheets
| SCREEN SIZE (DIAG.) | PIXEL PITCH (MM.) | SCREEN RESOLUTION (PIXEL) | VIEWING ANGLE | BRIGHTNESS | CUTSHEET DOWNLOAD |
|---|---|---|---|---|---|
| 27" | 1.25 | 480 x 270 | 140°/ 120° | 600–800nit | DVLC125 |
