Video Wall Bundles
Everything you need to create and maintain a stunning yet cost effective video wall.

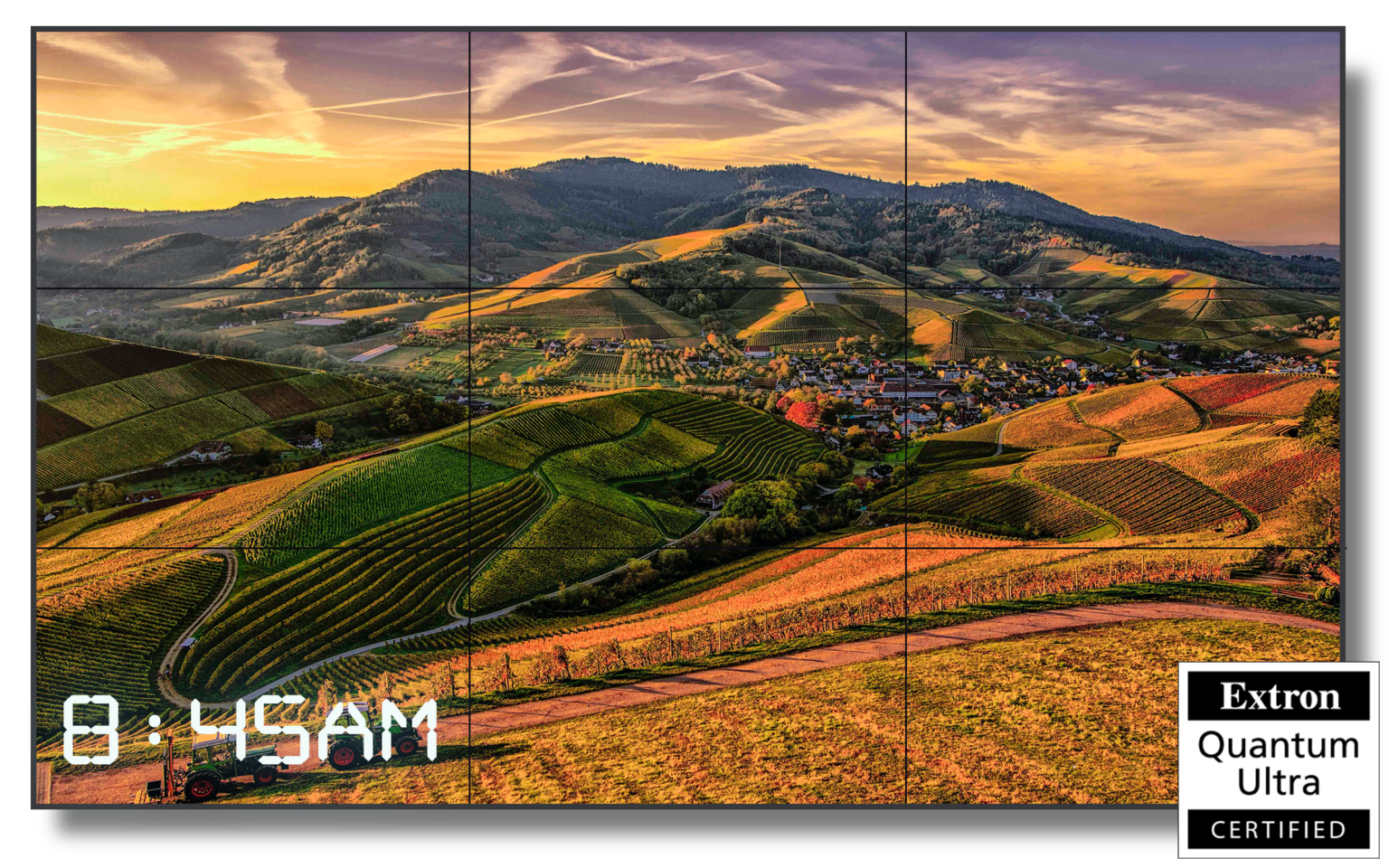

2×2 and 3×3 Video Wall Bundles
What’s included (more information below):
- NEX Displays
- Cables
- H-mounts
- Side Covers (Trim)
- SpyderX Pro Hardware + Wall Calibrator Software
All NEX displays are 24/7 rated, TAA-compliant & secure-ready (no RF/NFC, WiFi, or embedded computing).
Video Wall Control Software
When a third-party control system isn’t in the budget, our free control software will allow you to power on/off (manual or scheduled).
4K Daisy-Chaining
Ability to daisy-chain video wall via DisplayPort, supporting signal resolutions up to 3840×2160 at 60Hz.
Color Calibration
Before shipment, displays are thoroughly color calibrated to reduce on-site setup time. We can also come onsite to ensure color balance with a finished system.
Master Set Control
NEX users can define a “Master Set” which allows for the control of all displays at once using a single IR remote controller.
Over Heating
Prevention
Prevents internal electronics from overheating.
Bezel Gap Options
Extreme Narrow Bezel (ENB) displays with bezels of 1.74mm (panel bezel to panel bezel) & Razor Narrow Bezel (RNB) displays with a tiled gap of 0.88mm.
Item | Detail |
---|---|
Panel Technology | Commercial LED-LCD (Direct-lit) IPS |
Screen Size | 55″ |
Dimension (W x H x D) & Weight (typ.) | 47.73″ x 26.89″ x 3.51″ , 54lbs |
Resolution | 1920×1080 |
Aspect Ratio | 16:9 |
Brightness | 500nit |
Viewing Angle | 178° / 178° |
Combined Bezel Width | 0.88mm / 1.74mm* |
Industrial Reliability | 50,000 / 60,000+ Hours |
Inputs | (3) HDMI, (2) DisplayPort, (1) Ethernet, (1) RS-232 |
Outputs | (1) DisplayPort, (1) RS-232, Audio (One 3.5mm jack) |
*Panel bezel to panel bezel
Item | Download |
---|---|
NEX User Manual | Download file |
Serial Command List | Download file |
Wall Calibrator Manual | Download file |
Warranty | Warranty |
NEX55MLX Drawing | Download file |
NEX55MLR Drawing | Download file |
Configuration | Diagonal Measurment | Combined Bezel Width | Brightness | Cutsheet Download |
---|---|---|---|---|
2 x 2 | 110″ | 0.88mm | 500nit | NEX55MLR-VWB22 |
3 x 3 | 165″ | 0.88mm | 500nit | NEX55MLR-VWB33 |
2 x 2 | 110″ | 1.74mm* | 500nit | NEX55MLX-VWB22 |
3 x 3 | 165″ | 1.74mm* | 500nit | NEX55MLX-VWB33 |
*Panel bezel to panel bezel
Video Wall Control Software – When a third-party control system isn’t in the budget, our free control software will allow you to power on/off (manual or scheduled).
4K Daisy-Chaining – Ability to daisy-chain video wall via DisplayPort, supporting signal resolutions up to 3840×2160 at 60Hz.
Color Calibration – Before shipment, displays are thoroughly color calibrated to reduce on-site setup time. We can also come onsite to ensure color balance with a finished system.
Master Set Control – NEX users can define a “Master Set” which allows for the control of all displays at once using a single IR remote controller.
Over Heating Prevention – Prevents internal electronics from overheating.
Bezel Gap Options – Extreme Narrow Bezel (ENB) displays with bezels of 1.74mm (panel bezel to panel bezel) & Razor Narrow Bezel (RNB) displays with a tiled gap of 0.88mm.
Panel Technology |
Commercial LED-LCD (Direct-lit) IPS |
Screen Size |
55″ |
Dimension (W x H x D) & Weight (typ.) |
47.73″ x 26.89″ x 3.51″ , 54lbs |
Resolution |
1920×1080 |
Aspect Ratio |
16:9 |
Brightness |
500nit |
Viewing Angle |
178° / 178° |
Combined Bezel Width |
0.88mm / 1.74mm* *Panel bezel to panel bezel |
Industrial Reliability |
50,000 / 60,000+ Hours |
Inputs |
(3) HDMI, (2) DisplayPort, (1) Ethernet, (1) RS-232 |
Outputs |
(1) DisplayPort, (1) RS-232, Audio (One 3.5mm jack) |
Item | Download |
---|---|
NEX User Manual | Download file |
Serial Command List | Download file |
Warranty | Warranty |
NEX55MLX Drawing | Download file |
NEX55MLR Drawing | Download file |
Configuration |
Diagonal Measurment |
Combined Bezel Width |
Brightness |
Cutsheet Download |
2 x 2 |
110″ |
0.88mm |
500nit |
|
3 x 3 |
165″ |
0.88mm |
500nit |
|
2 x 2 |
110″ |
1.74mm* |
500nit |
|
3 x 3 |
165″ |
1.74mm* |
500nit |
*Panel bezel to panel bezel

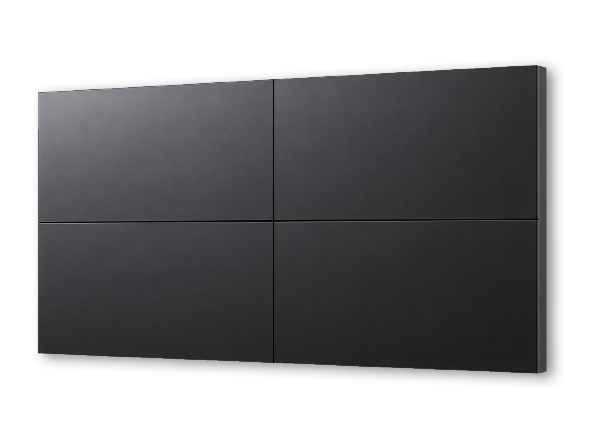

Next-Gen (NEX-Series) Displays
Next-Gen (NEX-series) video wall displays are product of GPO Display’s decade-long project to develop the most reliable, visually-stunning LCD video wall solution possible. It’s never been easier or more affordable to create large video wall displays with virtually invisible bezels and support for 4K video. Like all GPO Display LCD video wall solutions before it, the NEX-series is assembled-to-order, thoroughly & precisely color-calibrated, and subjected to rigorous quality control processes.

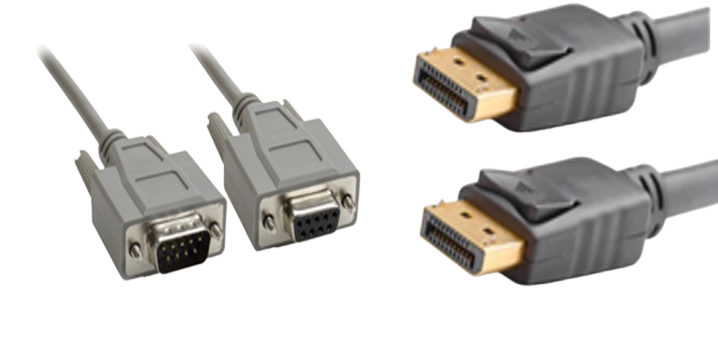

Cables
All the necessary cabling for 4K video & control signal daisy-chaining (DisplayPort & RS-232) is included.
NEX-series displays feature five 4K-capable inputs. All three HDMI 2.0 inputs and both DisplayPort 1.4a inputs are HDCP 2.2 compliant. Each input can receive up to a 3840 x 2160/60Hz signal throughout the array without the need for signal distribution or amplification.
Color Calibration

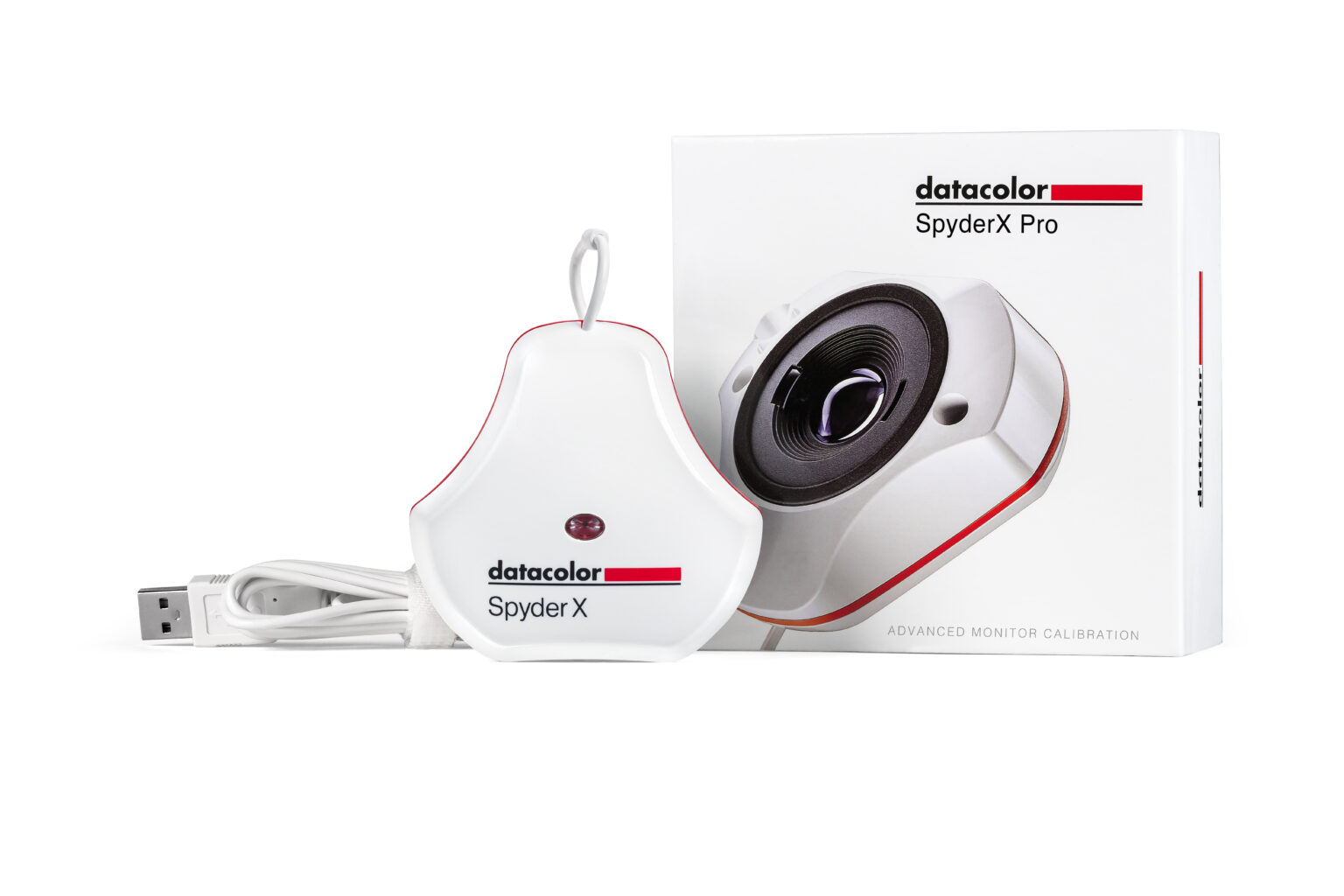

SpyderX Pro: This color calibration tool is the ideal mix of effectiveness and affordability. The SpyderX Pro allows users to quickly gather measurements including brightness & color readings, followed by a quick, easy calibration process using GPO Display’s Wall Calibrator AutoCALI software. NOTE: Windows PC with USB port and HDMI or DP output capable of 1920×1080/60Hz + RGB 4:4:4 is required for best results.
Wall Calibrator (AutoCALI) Software: Designed for use with the Datacolor SpyderX Pro, this software is a user-friendly tool for matching video wall displays’ brightness and color. While GPO Display conducts calibration prior to shipment, further touch-up can be necessary when additional cabling and headend equipment is put in place. This software makes it easy to quickly measure multi-point color coordinates & luminance, and easily translate those into array target values. The rest of the calibration process is as easy as holding your SpyderX Pro up to calibration points on the displays and a simple click of the mouse.
Auto-Aligning H-Mount & Side Covers
This bundle includes four H-Mounts and four side covers for a complete, attractive mounting solution.
GPO Display’s exclusive H-Mount video wall mounting system ensures quick, easy installation with virtually automatic alignment. 2×2 mounting grids can even be assembled on the floor prior to being placed on the wall. Most importantly, H-Mounts prevent shifts in alignment over time — an issue commonly associated with front-accessible mounting solutions.
