Sturdiglass (NEX-SG Series)
The Sturdiglass option for 55″ Extreme Narrow Bezel video wall displays improves screen durability without compromising viewing experience. GPO Display uses the latest in optical bonding technology to affix high-grade, durable protective glass to the LCD surface. This ensures a strong, long-term bond that won’t “bubble” or peel, even in the most demanding of applications.
Sturdiglass is ideal for displays placed in high-traffic, public settings where there is a high risk of impact. Touch video walls also benefit from Sturdiglass technology, with none of the internal reflection or parallax error that comes with installing separate pieces of protective glass in front of LCD panels. Optical bonding also prevents dust and moisture buildup associated with separate protective glass.
All displays are 24/7 rated, TAA-compliant & secure-ready (no RF/NFC, WiFi, or embedded computing).
Extended daisy-chaining of 4K/30Hz video signals in arraysup to 5 wide x 5 high & 4K/60Hz in 3 wide x 3 high arrays
LCD video wall panels can be slightly out of sync with one another regardless of source devices, signal distribution, and processing equipment. GPO Display’s special approach to backend electronics eliminates this issue, ensuring a smooth, seamless appearance for fast-motion video.
Quick presets that allow you to recall source layouts with a single serial command.
Video Wall Control Software
When a third-party control system isn’t in the budget, our free control software will allow you to power on/off (manual or scheduled).
Over Heating
Prevention
Prevents internal electronics from overheating.
Bezel Width
1.74mm (panel bezel to panel bezel)
Color Calibration
Before shipment, displays are thoroughly color calibrated to reduce on-site setup time. We can also come onsite to ensure color balance with a finished system.
HDCP Compliant
HDCP-Compliant digital inputs.
Multi Vision Processing
Expand sources over entire video wall arrays.
| Item | Detail |
|---|---|
| Panel Technology | Commercial-grade IPS/ Direct-LED backlight |
| Screen Size | 55″ |
| Resolution | 1920×1080 |
| Aspect Ratio | 16:9 |
| Brightness | 500nit |
| Response Time | 8ms |
| Viewing Angle | 178° / 178° |
| Combined Bezel Width | 1.74mm* |
| Industrial Reliability | 60,000+ Hours |
| Inputs | (3) HDMI, (2) DisplayPort, (1) Ethernet, (1) RS-232 |
| Outputs | (1) DisplayPort, (1) RS-232, Audo (One 3.5mm jack) |
*panel bezel to panel bezel

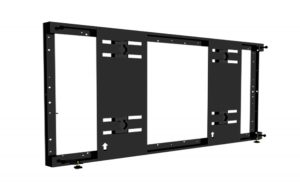

H-Mount
The newly-designed H-Mount builds on GPO Display’s long line of proprietary video wall mounting solutions. This latest mount provides the same benefits of past designs (ease of installation & alignment, low risk of damage during installation) but with better access for individual displays during service. As with past GPO Display video wall mounts, side covers are included at no additional cost.

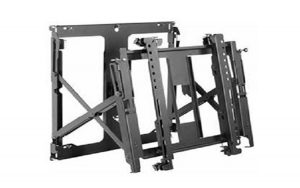

Full Service Mount
This Full-Service Video Wall Mount from Peerless-AV provides a front-serviceable alternative to GPO Display’s proprietary mounts. These mounts are an especially good fit for video wall arrays where displays are recessed in a wall pocket or are surrounded by custom trim/millwork. Wall plate spacers allow for quick installation, and “no-tool-required” fine-tune adjustments can be made on each axis. Side covers/trim are optional.

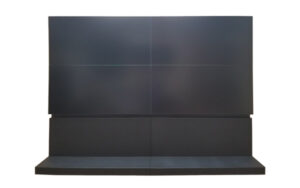

Floor Stand
Floor Stands can be used to create self-supporting video walls of infinite length. Optional locking rear doors are available for floor stand mounts and lend a clean, finished appearance to the wall from every angle. Floor Stands are built-to-order and can be customized upon request. Floor stands can include either wheels or anchors at the base.
| Item | Download |
|---|---|
| User Manual | Download file |
| Serial Command List | Download file |
| Warranty | Warranty |
| Screen Size | Combined Bezel Width | Brightness | Cutsheet Download |
|---|---|---|---|
| 55″ | 1.74mm* | 500nit | NEX55MLX-SG |
*panel bezel to panel bezel
Video Wall Control Software – When a third-party control system isn’t in the budget, our free control software will allow you to power on/off (manual or scheduled).
Over Heating Prevention – Prevents internal electronics from overheating.
Bezel Width – 1.74mm (panel bezel to panel bezel)
Color Calibration – Before shipment, displays are thoroughly color calibrated to reduce on-site setup time. We can also come onsite to ensure color balance with a finished system.
HDCP Compliant – HDCP-Compliant digital inputs.
Multi Vision Processing – Expand sources over entire video wall arrays.
|
Panel Technology |
Commercial-grade IPS/ Direct-LED backlight |
|
Screen Size |
55″ |
|
Resolution |
1920×1080 |
|
Aspect Ratio |
16:9 |
|
Brightness |
500nit |
|
Response Time |
8ms |
|
Viewing Angle |
178° / 178° |
|
Combined Bezel Width |
1.74mm* *panel bezel to panel bezel |
|
Industrial Reliability |
60,000+ Hours |
|
Inputs |
(3) HDMI, (2) DisplayPort, (1) Ethernet, (1) RS-232 |
|
Outputs |
(1) DisplayPort, (1) RS-232, Audo (One 3.5mm jack) |
H-Mount
The newly-designed H-Mount builds on GPO Display’s long line of proprietary video wall mounting solutions. This latest mount provides the same benefits of past designs (ease of installation & alignment, low risk of damage during installation) but with better access for individual displays during service. As with past GPO Display video wall mounts, side covers are included at no additional cost.
Full Service Mount
This Full-Service Video Wall Mount from Peerless-AV provides a front-serviceable alternative to GPO Display’s proprietary mounts. These mounts are an especially good fit for video wall arrays where displays are recessed in a wall pocket or are surrounded by custom trim/millwork. Wall plate spacers allow for quick installation, and “no-tool-required” fine-tune adjustments can be made on each axis. Side covers/trim are optional.
Floor Stand
Floor Stands can be used to create self-supporting video walls of infinite length. Optional locking rear doors are available for floor stand mounts and lend a clean, finished appearance to the wall from every angle. Floor Stands are built-to-order and can be customized upon request. Floor stands can include either wheels or anchors at the base.
| Item | Download |
|---|---|
| User Manual | Download file |
| Serial Command List | Download file |
| Warranty | Warranty |
|
Screen Size |
Combined Bezel Width |
Brightness |
Cutsheet Download |
|
55″ |
1.74mm* *panel bezel to panel bezel |
500nit |

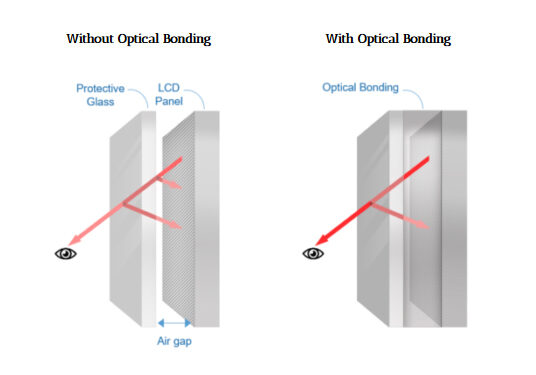

Clarity Increase
When separate protective glass is used, there is a small gap between the LCD panel and protective glass. The gap and panel have different refractive indexes, causing the light to bend when it passes through them. This results in a loss in its intensity, affecting the screen’s readability.

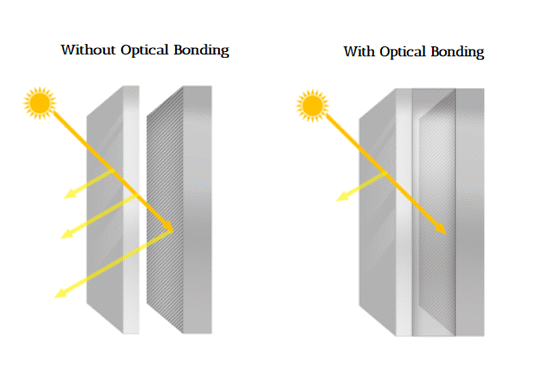

Glare Reduction
When light from an external source passes through the panel and the gap, refraction causes some of it to be reflected back, creating glare on the screen. The increased light transmission of a screen with optical bonding significantly reduces glare from external light sources.

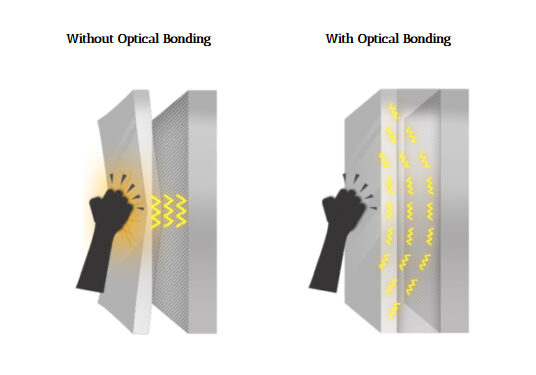

Durability Increase
The additional resin layer in optical bonding also provides increased physical durability to the screen. Eliminating the gap between the LCD module and the panel increases the screen’s resistance to scratches, dust, and fluids.

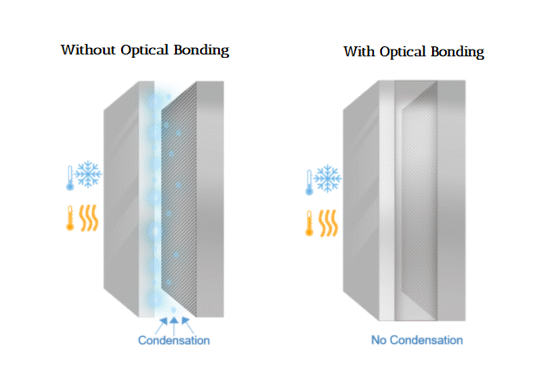

Condensation Elimination
In environments with wide temperature ranges, it is common for condensation to cause screens to become foggy from moisture that penetrates the air gap. A monitor with optical bonding fills the gap to prevent condensation from occurring for improved readability.
