NEXT GEN
LCD Video Wall
NEX-Series Video Wall Displays
Next-Gen (NEX-series) LCD video wall displays are product of GPO Display’s decade-long project to develop the most reliable, visually-stunning LCD video wall solution possible. It’s never been easier or more affordable to create large video wall displays with virtually invisible bezels and support for 4K video. Like all GPO Display LCD video wall solutions before it, the NEX-series is assembled-to-order, thoroughly & precisely color-calibrated, and subjected to rigorous quality control processes.
All displays are 24/7 rated, TAA-compliant & secure-ready (no RF/NFC, WiFi, or embedded computing).

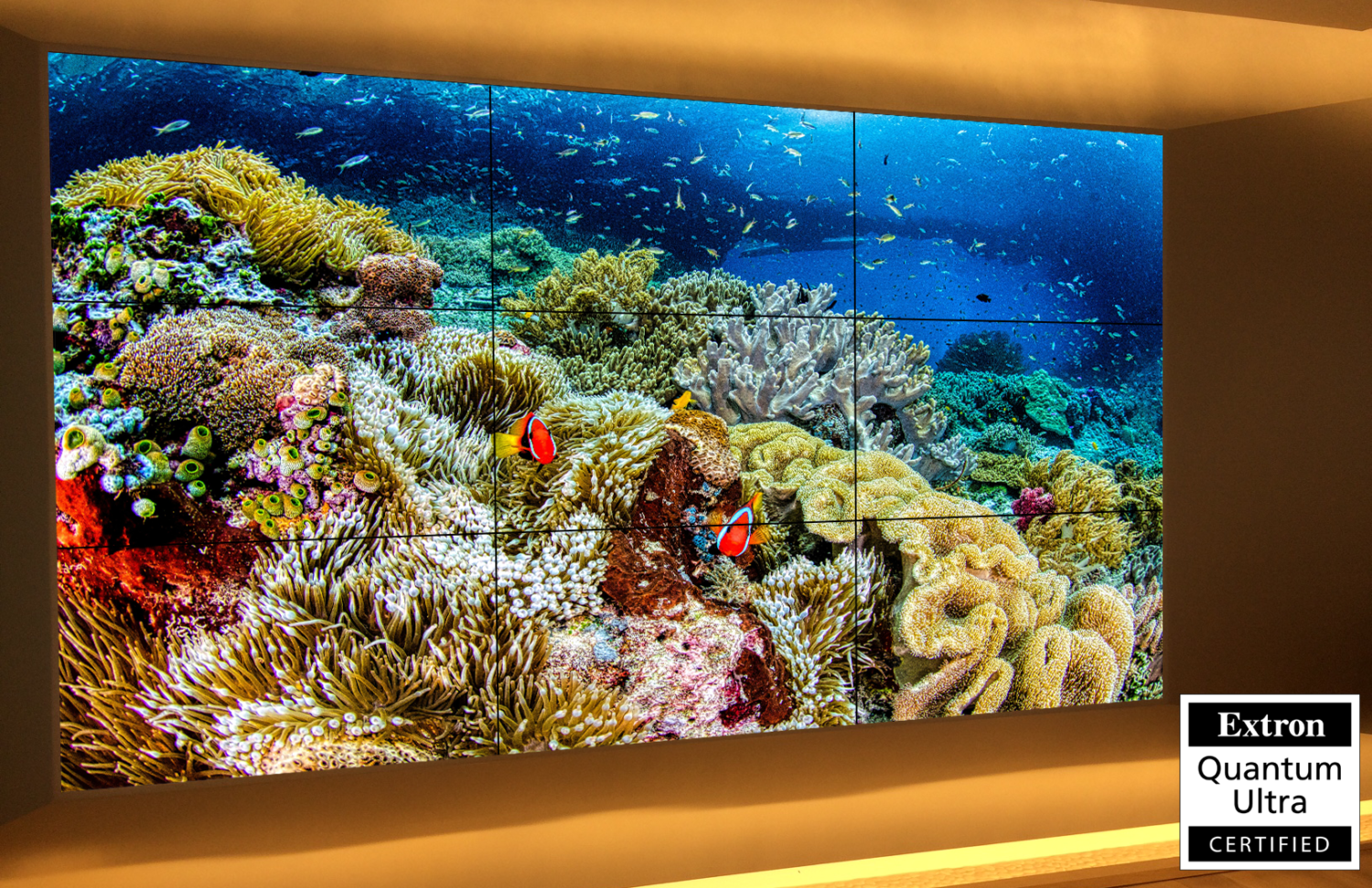

*49″ & 55″ NEX-Displays are Extron Quantum Ultra Certified*
OPTIONAL COLOR CALIBRATION KIT AVAILABLE.
Quick Preset
Make the most of your matrix switcher; save on processing costs and reduce transition times with our optional Quick Preset commands.
Image Rotation
NEX-series displays feature built-in image rotation (0, 180, 270-degree) and image flipping, making it easier for users to display a wide range of content types without a costly processor or adjustments at the source level.
Color Calibration
Before shipment, displays are thoroughly color calibrated to reduce on-site setup time. We can also come onsite to ensure color balance with a finished system.
HDCP Compliant
HDCP-Compliant digital inputs.
4K Multi Vision
Processing
Expand 4K sources over video wall arrays up 5 wide by 5 high.
Bezel Gap Options
Razor Narrow Bezels (0.88mm combined), Extreme Narrrow Bezels (1.8mm) and Ultra Narrow Bezels (3.5mm) available
| Item | Detail |
|---|---|
| Panel Technology | Commercial LED-LCD (Direct-lit) IPS |
| Screen Size | 49″ / 55″ / 75″ |
| Resolution | 1920×1080 (49-55″) / 3840×2160 (75″ only) |
| Aspect Ratio | 16:9 |
| Brightness | 500nit – 700nit |
| Response Time | 6-8ms |
| Viewing Angle | 178° / 178° |
| Combined Bezel Width | 0.88mm / 1.74mm* /3.5mm / 29.6mm (75″ only) |
| Industrial Reliability | 50,000 / 60,000+ Hours |
| Inputs | (3) HDMI, (2) DisplayPort, (1) Ethernet, (1) RS-232 |
| Outputs | (1) DisplayPort, (1) RS-232, Audio (One 3.5mm jack) |
*Panel bezel to panel bezel

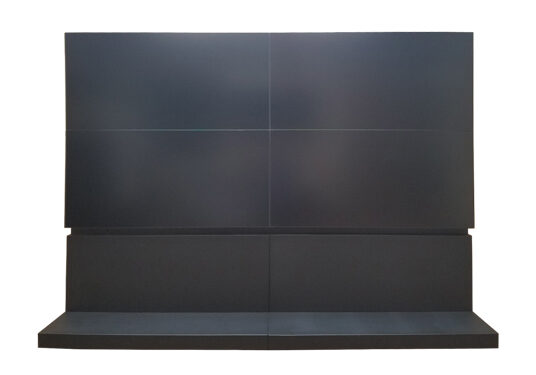

H-Mount
The one-of-a-kind H-Mount builds on GPO Display’s long line of proprietary video wall mounting solutions. This latest mount provides the same benefits of past designs (ease of installation & alignment, low risk of damage during installation) but with better access for individual displays during service. Side covers/trim are included at no additional cost. This mount is ideal for video walls comprised of three or fewer rows.

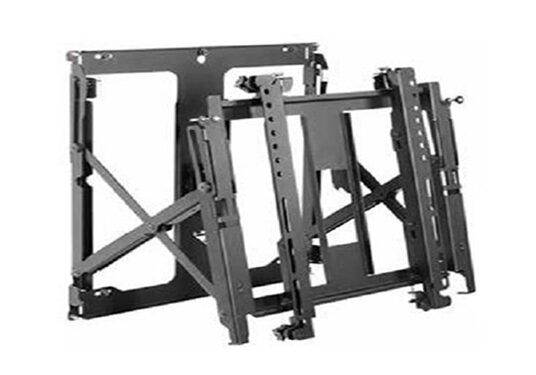

Full Service Mount
The Full-Service Video Wall Mount from Peerless-AV provides a front-serviceable alternative to GPO Display’s proprietary mounts. These mounts are an especially good fit for video wall arrays of four rows or more, or cases where displays are recessed. Wall plate spacers allow for quick installation, and “no-tool-required” fine-tune adjustments can be made on each axis. Side covers/trim are optional.

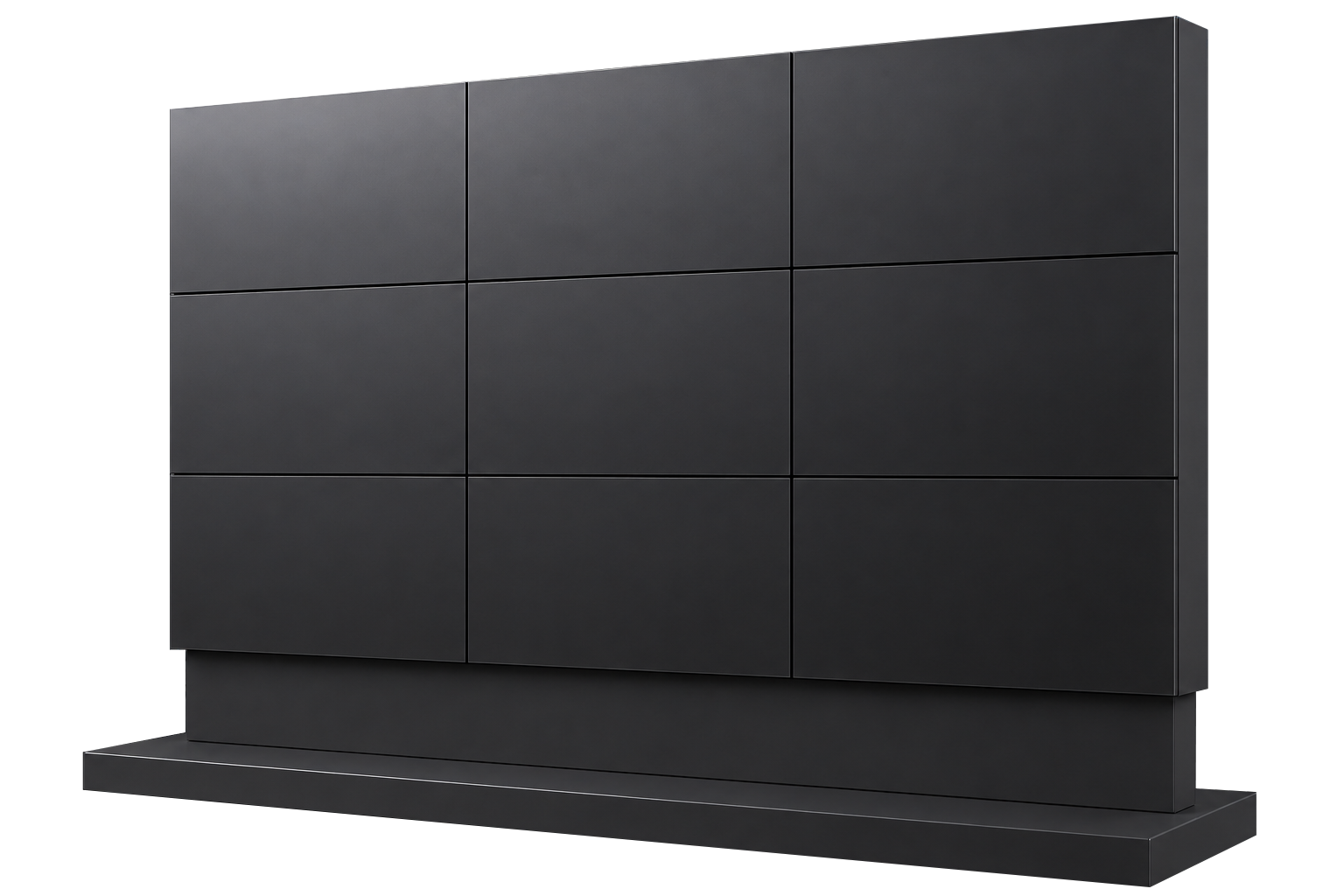

Floor Stand
Floor Stands can be used to create self-supporting video walls of infinite length. Optional locking rear doors are available for floor stand mounts and lend a clean, finished appearance to the wall from every angle. Floor Stands are built-to-order and can be customized upon request. Floor stands can include either wheels or anchors at the base.
| Item | Download |
|---|---|
| User Manual | Download file |
| Serial Command List | Download file |
| SICP Video Wall Control Software Manual | Download file |
| Wall Calibrator (AutoCali) Manual | Download file |
| Warranty | Warranty |
| NEX49MLU Drawing | Download file |
| NEX55MLU Drawing | Download file |
| NEX55HLU Drawing | Download file |
| NEX55MLX Drawing | Download file |
| NEX55MLR Drawing | Download file |
| NEX55HLR Drawing | Download file |
| NEX75K Drawing | Download file |
Go Here to request a link to download the Serial Control Software.
| Screen Size | Combined Bezel Width | Brightness | Cutsheet Download |
|---|---|---|---|
| 49″ | 3.5mm | 500nit | NEX49MLU |
| 55″ | 3.5mm | 500nit | NEX55MLU |
| 55″ | 3.5mm | 700nit | NEX55HLU (EOL) |
| 55″ | 1.74mm* | 500nit | NEX55MLX |
| 55″ | 1.74mm* | 700nit | NEX55HLX |
| 55″ | 0.88mm | 500nit | NEX55MLR |
| 55″ | 0.88mm | 700nit | NEX55HLR |
| 75″ | 29.6mm | 650nit | NEX75K |
*Panel bezel to panel bezel
Quick Preset – Make the most of your matrix switcher; save on processing costs and reduce transition times with our optional Quick Preset commands.
Image Rotation – NEX-series displays feature built-in image rotation (0, 180, 270-degree) and image flipping, making it easier for users to display a wide range of content types without a costly processor or adjustments at the source level.
Color Calibration – Before shipment, displays are thoroughly color calibrated to reduce on-site setup time. We can also come onsite to ensure color balance with a finished system.
HDCP Compliant – HDCP-Compliant digital inputs.
4K Multi Vision Processing
Expand 4K sources over video wall arrays up 5 wide by 5 high.
Bezel Gap Options – Razor Narrow Bezels (0.88mm combined), Extreme Narrrow Bezels (1.8mm) and Ultra Narrow Bezels (3.5mm) available
|
Panel Technology |
Commercial LED-LCD (Direct-lit) IPS |
|
Screen Size |
49″ / 55″ / 75″ |
|
Resolution |
1920×1080 (49-55″) / 3840×2160 (75″ only) |
|
Aspect Ratio |
16:9 |
|
Brightness |
500nit – 700nit |
|
Response Time |
6-8ms |
|
Viewing Angle |
178° / 178° |
|
Combined Bezel Width |
0.88mm / 1.74mm* /3.5mm / 29.6mm (75″ only) |
|
Industrial Reliability |
50,000 / 60,000+ Hours |
|
Inputs |
(3) HDMI, (2) DisplayPort, (1) Ethernet, (1) RS-232 |
|
Outputs |
(1) DisplayPort, (1) RS-232, Audio (One 3.5mm jack) |
H-Mount
The one-of-a-kind H-Mount builds on GPO Display’s long line of proprietary video wall mounting solutions. This latest mount provides the same benefits of past designs (ease of installation & alignment, low risk of damage during installation) but with better access for individual displays during service. Side covers/trim are included at no additional cost. This mount is ideal for video walls comprised of three or fewer rows.
Full Service Mount
The Full-Service Video Wall Mount from Peerless-AV provides a front-serviceable alternative to GPO Display’s proprietary mounts. These mounts are an especially good fit for video wall arrays of four rows or more, or cases where displays are recessed. Wall plate spacers allow for quick installation, and “no-tool-required” fine-tune adjustments can be made on each axis. Side covers/trim are optional.
Floor Stand
Floor Stands can be used to create self-supporting video walls of infinite length. Optional locking rear doors are available for floor stand mounts and lend a clean, finished appearance to the wall from every angle. Floor Stands are built-to-order and can be customized upon request. Floor stands can include either wheels or anchors at the base.
| Item | Download |
|---|---|
| User Manual | Download file |
| Serial Command List | Download file |
| SICP Video Wall Control Software Manual | Download file |
| Wall Calibrator (AutoCali) Manual | Download file |
| Warranty | Warranty |
| NEX49MLU Drawing | Download file |
| NEX55MLU Drawing | Download file |
| NEX55HLU Drawing | Download file |
| NEX55MLX Drawing | Download file |
| NEX55MLR Drawing | Download file |
| NEX55HLR Drawing | Download file |
| NEX75K Drawing | Download file |
Go Here to request a link to download the Serial Control Software.
Extended daisy-chaining of 4K/30Hz video signals in arraysup to 5 wide x 5 high & 4K/60Hz in 3 wide x 3 high arrays
LCD video wall panels can be slightly out of sync with one another regardless of source devices, signal distribution, and processing equipment. GPO Display’s special approach to backend electronics eliminates this issue, ensuring a smooth, seamless appearance for fast-motion video.
