Self-Monitoring (EN Series)
Discontinued

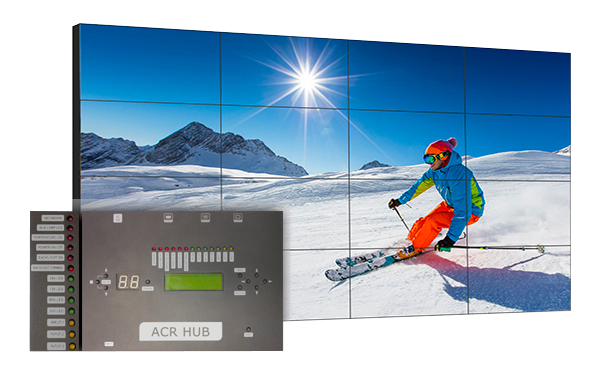

Our Self-Monitoring Video Walls are designed for demanding, mission-critical applications. These displays include our Auto-Condition Reporting (ACR) monitoring system which provides immediate video wall diagnostics, which ensures maximum uptime for your video wall by improving planning in the rare event of a service issue.
With the most comprehensive diagnostic tool for displays in the industry, you can rest assured knowing that your video wall will perform to its potential over the years. Options ranging from Extreme Narrow Bezel (1.8mm combined bezel gap) to Ultra Narrow Bezel 3.5mm combined bezel gap) are available. Screen size options include 46″, 49″, and 55″.
Resources
Specifications
| Item | Detail |
|---|---|
| Panel Technology | Commercial LED-LCD (Direct-lit) IPS or SPVA |
| Screen Size | 46″ / 49″ / 55″ |
| Resolution | 1920×1080 |
| Aspect Ratio | 16:9 |
| Brightness | 500nit – 700nit |
| Response Time | 8ms |
| Viewing Angle | 178° / 178° |
| Combined Bezel Width | 1.7mm / 1.8mm / 3.5mm |
| Industrial Reliability | 50,000 / 60,000+ Hours |
| Inputs | (2) DVI, (1) VGA, (1) RS232, (1) Audio (1) LAN – ACR Monitoring Only |
| Outputs | (2) DVI, (1) VGA, (1) RS232 |
Cut Sheets
| SCREEN SIZE (DIAG.) | COMBINED BEZEL WIDTH | BRIGHTNESS | CUTSHEET DOWNLOAD |
|---|---|---|---|
| 46" | 3.5mm | 500nit | EN46MSU |
| 46" | 3.5mm | 700nit | EN46HSU |
| 46" | 1.8mm | 500nit | EN46MSE |
| 46" | 1.8mm | 700nit | EN46HSE |
| 49" | 3.5mm | 700nit | EN49HLU |
| 49" | 3.5mm | 500nit | EN49MLU |
| 49" | 1.8mm | 500nit | EN49MLE |
| 49" | 1.8mm | 700nit | EN49HLE |
| 55" | 3.5mm | 500nit | EN55MLU |
| 55" | 3.5mm | 700nit | EN55HLU |
| 55" | 1.8mm | 500nit | EN55MLE |
| 55" | 1.8mm | 700nit | EN55HLE |
How ACR Connects
