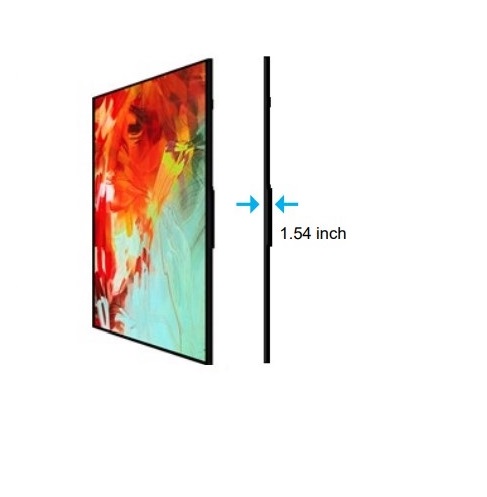

USP (Ultra-Slim Profile) displays feature a mounted depth of 1.54”. This sleek design, combined with their light weight and commercial reliability, makes USP displays ideal for a wide range of signage applications. Custom framing options are available to ensure that your digital signage is both eye-catching and in keeping with the theme of your space. Available in 49” Full-HD (16:9 aspect ratio), USP displays represent the cutting edge in digital signage displays.
All displays are 24/7 rated, TAA-compliant & secure-ready (no RF/NFC, WiFi, or embedded computing).
Slim Profile
This ultra-slim depth allows for placement in a wider variety of settings and ensures ADA compliance with room to spare. Custom framing options are available to ensure that your digital signage is both eye-catching and in keeping with the theme of your space.
Features
Anti-Glare
View content, not your reflection.
Slim Profile
At 1.54” mounted depth, this ultra-slim depth allows for placement in a wider variety of settings.
Brightness
The USP Display comes in 500nit brightness.
Display Size
49″
HDCP Compliant
HDCP-Compliant digital inputs.
Mounts
Mounting brackets included
Specifications
| Item | Detail |
|---|---|
| Panel Technology | Commercial-grade IPS Square LCD / Edge-LED backlight |
| Screen Size | 48.5″ |
| Resolution | 3840 x 2160 @ 60Hz |
| Aspect Ratio | 16:9 |
| Brightness | 500nit |
| Response Time | 8ms |
| Viewing Angle | 178° / 178° |
| Industrial Reliability | 60,000+ Hours |
| Pixel Pitch (mm) | 0.27963 (H) x 0.27963 (V) |
| Inputs | (1) Mini HDMI 2.0, (2) RS232, (2) Micro USB, (1) Ethernet, (1) External Memory (Micro SD) |
Cut Sheets
| SCREEN SIZE | BEZEL WIDTH | BRIGHTNESS | CUTSHEET DOWNLOAD |
|---|---|---|---|
| 26.5″ | 10mm even bezel | 300nit | USP265V (EOL) |
| 26.5″ | 12.3mm even bezel | 450nit | USP265M (EOL) |
| 49″ | 12.3mm even bezel | 450nit | USP490M (EOL) |
| 48.5″ | Top: 8.9mm L/R: 9.4mm Bottom: 12.5 mm | 500nit | USP490KV |
Resources
Creative Video Wall Layouts
The 49” 16:9 model is great as a standalone piece, but they truly stand out when combined for eye-catching, unusual video wall configurations. USP displays’ light weight make it easier to install and configure creative video wall layouts, including configurations with rotated displays.
Why Choose Ultra-Slim Profile Displays?
Customizable Framing
USP displays can be easily outfitted with custom framing to fit in with existing interior design. Whether it be framing for a movie “poster”, digital art piece, or a building directory, GPO Display can support virtually any custom request.
Easy-to-Place Menu Boards
Another benefit of USP displays’ slim profile is the ease with which they can replace traditional “light boxes” or other forms of static signage. Their unique design coupled with light weight makes it particularly easy to place in digital menu board applications. Bezel widths are slim enough for video wall-like applications as well.
Android Board
Featuring an integrated Android OS for easy updating, USP displays allow for content management by a variety of methods. Simple scheduling, updating and refreshing of content can take place over the network using a variety of digital signage software platforms without the need for a separate player device.
